0.2mm 0.5mm 1 2 3mm Slot Wedge Wire Screen 304 316 Stainless Steel Water Filter Pipe

0.2mm 0.5mm 1 2 3mm Slot Wedge Wire Screen 304 316 Stainless Steel Water Filter Pipe

Wedge wire Johnson filter screen is a metal mesh element widely used in screening, filtration, dehydration and desliming operations for sieving and filtration. It has high strength, rigidity and load carrying capacity and can be made into a variety shapes of rigid screening filters.
The wedge wire screen consists of surface profiles and support profiles. Surface profiles, usually v-shaped wires, are wrapped and welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows. The direction of the flow is determined by the position of V-shaped wires (surface profiles) in relation to the support profiles. Wedge wires screens are either flow-out-to-in or flow-in-to-out.Features of wedge wire Johnson filter screen:
*Flat surface.
*Excellent filtering performance.
*Accurate distance between supporting profile.
*Welded production process for solid and strong structure.
*Good mechanical properties.
*High strength.
*High load capacity.
*Corrosion and rust resistance.
*Temperature resistance.
*Chemical stability.

Application:
*Vibrating screen decking.
*Surface water intake screens.
*Fish diversion screen panels.
*Hatchery screens.
*Grain drying screen.
*Malt kin or germination floors.
*Architectural wedge wire screen.
*Wedge wire grating.

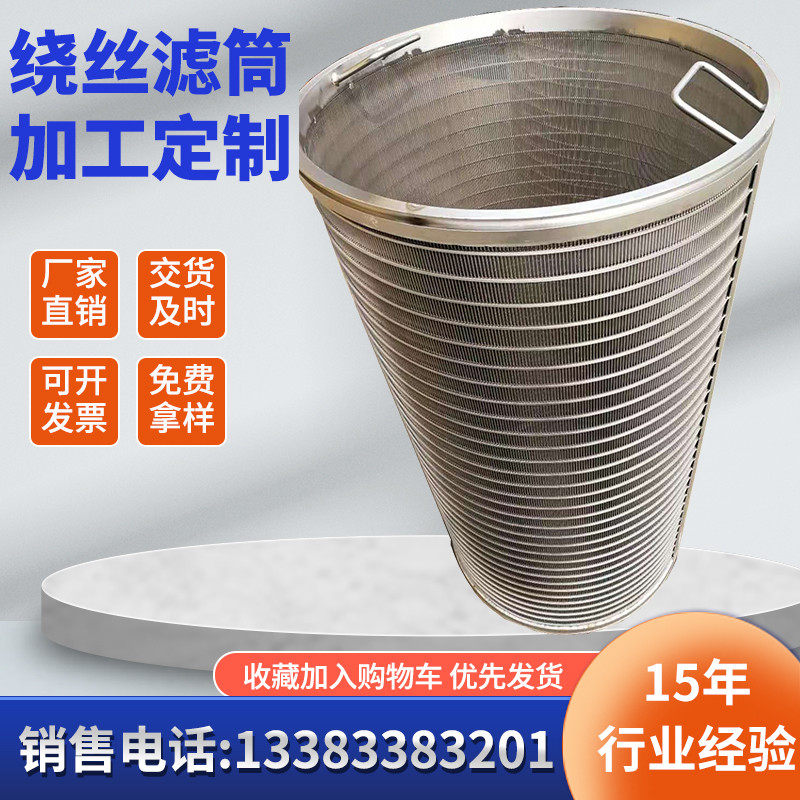

0.2mm 0.5mm 1 2 3mm Slot Wedge Wire Screen 304 316 Stainless Steel Water Filter Pipe Images
